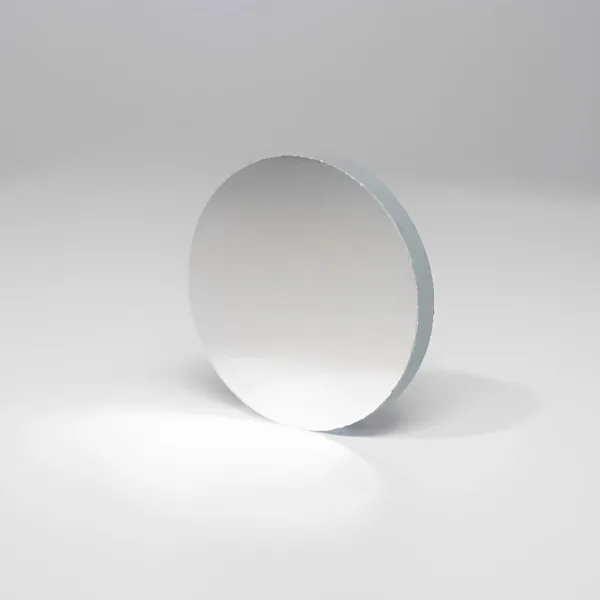

Custom Mirrors
Mirrors built to your specification: shape, substrate, coating, wavelength and angle.
- Part
- Custom Mirror
- Family
- Mirrors & Reflectors
- Fig.
- 07.05
- Coating
- In-house
- Quality
- ISO 9001
- Made in
- Roorkee
Description
Custom mirrors are made to your specification. Reflectivity, wavelength range and angle of incidence are set by the coating design, while size, shape, substrate and surface figure follow your drawing. They are used in laser systems, telescopes, microscopes and other instruments where a standard mirror will not do.
Specify yours.
Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.
AMaterial
- Optical glass (BK7-class crown, flint)
- Fused silica / fused quartz
- Sapphire
- CaF₂
- BaF₂
- MgF₂
- Silicon (Si)
- Germanium (Ge)
- Zinc sulphide (ZnS)
- Zinc selenide (ZnSe)
- Nd:YAG crystal
- Other UV and IR materials
BCoatingIn-house
- ARAnti-reflection
- Al · AgMetallic mirror
- HRDielectric mirror
- Filter
- Beam-splitter
- Polarizing
CTolerance grade
| Parameter | Commercial | Precision |
|---|---|---|
| Thickness | ±0.1 mm | ±0.01 mm |
| Radius | 1% | 0.5% |
| Refractive index | 0.001 | 0.0001 |
| Abbe (V-number) | 1% | 0.1% |
| Centration | 3 arc-min | 30 arc-sec |
| Tilt / wedge | 1 arc-min | 10 arc-sec |
| Surface irregularity | 1 fringe | λ/4 (0.25 fringe) |
| Surface quality (scratch-dig) | 60-40 | 10-5 |
DMade to your drawing
Send your drawing.
A drawing or a short spec is enough. We quote to it.
- Dimensions and tolerances
- Material and coating
- Surface quality
- Quantity
