Lenses

Spherical, cylindrical, aspheric and custom-designed lenses, made to your requirements. Positive lenses bring light to a focus; negative lenses spread it out. Choose a standard form below or send us a drawing.

Three polished optical lenses on a dark background
FIG. 01Lenses
Types
11
Coating
In-house
Quality
ISO 9001
Custom
To drawing
Since
1965
Made in
Roorkee

What it does · where it’s used

  1. Focus, collimate or expand a beam
  2. Form images in cameras, projectors, microscopes and telescopes
  3. Shape a laser beam in one axis with cylindrical lenses
  4. Cut colour fringing with achromatic doublets
Request a quoteSee the 11 types
01TypesLenses

Eleven types.

Open a type for how it works and where it is used. Each can be made in the material and coating you need.

FIG. 01.01
Three plano-convex lenses on a green background

Plano-Convex Lenses

One flat face, one convex face: the everyday lens for focusing and collimating.

FIG. 01.02

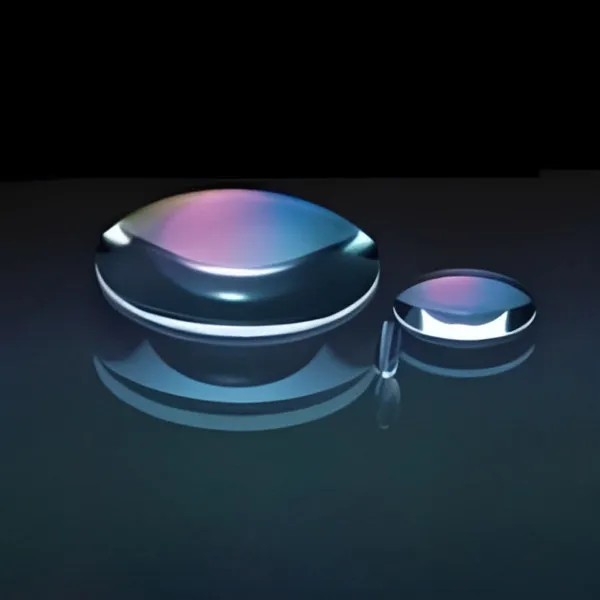

Two double-convex lenses on a dark background with coloured reflections

Double-Convex Lenses

Two convex faces: a positive lens for imaging at near-equal distances.

FIG. 01.03

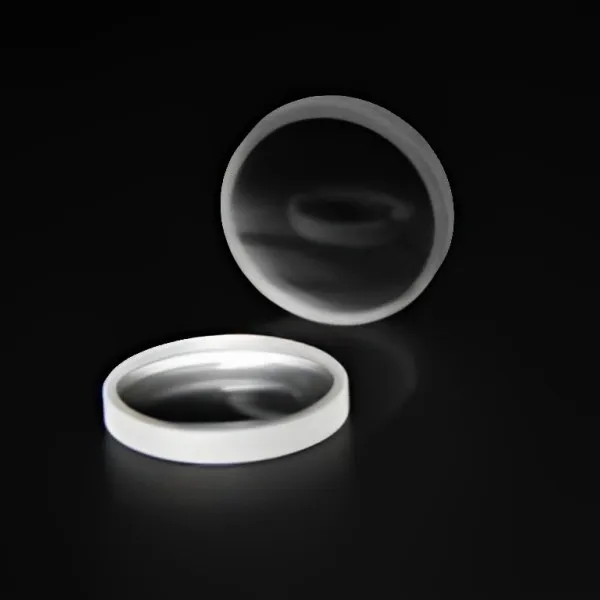

Two plano-concave lenses on black, one standing on its edge

Plano-Concave Lenses

One flat face, one concave face: a negative lens that spreads light out.

FIG. 01.04

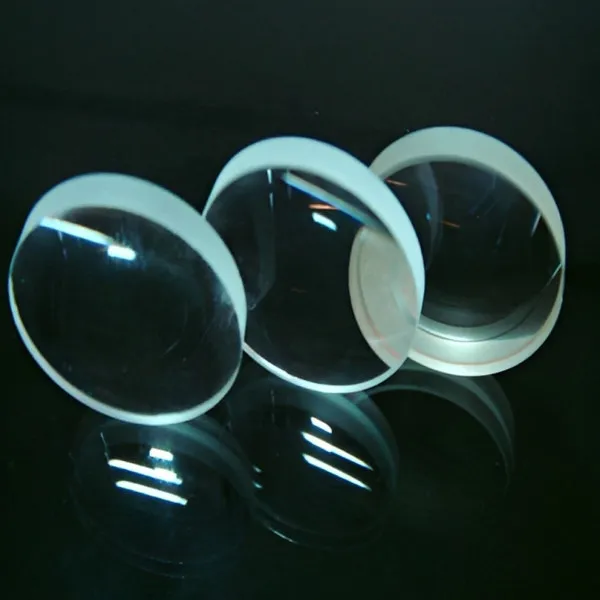

Three double-concave lenses on a dark background

Double-Concave Lenses

Two concave faces: a negative lens for diverging light and expanding beams.

FIG. 01.05

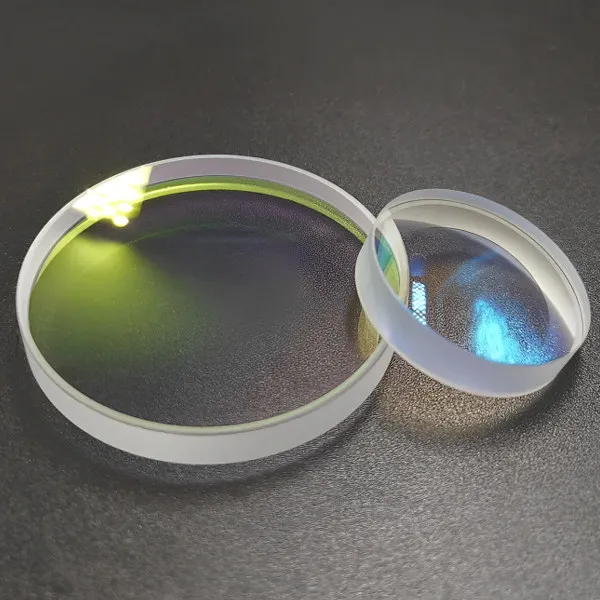

Two positive meniscus lenses on a grey textured surface

Positive Meniscus Lenses

Convex-concave and thicker at the centre: adds focusing power with little aberration.

FIG. 01.06

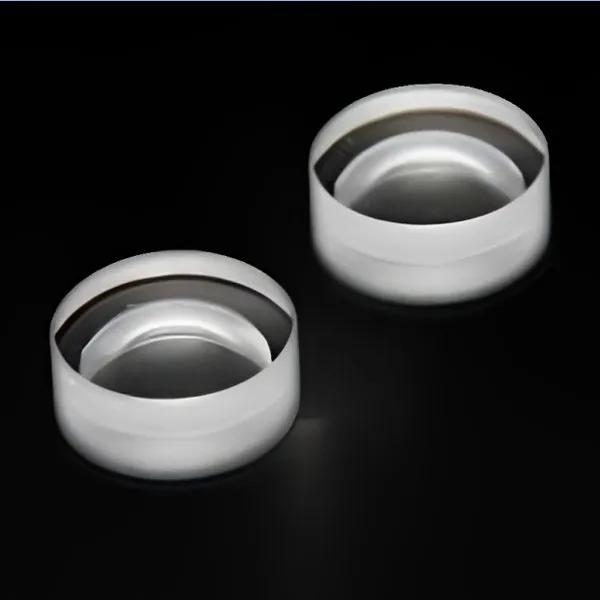

Two negative meniscus lenses on black

Negative Meniscus Lenses

Convex-concave and thicker at the edge: a diverging lens that helps correct aberrations.

02Also madeLenses

Beyond the standard forms.

  1. 01.A

    Aspheric lenses

    A non-spherical surface cancels spherical aberration, so one element can focus tighter than a spherical lens.

  2. 01.B

    Custom lenses

    Other forms, sizes, materials and coatings, made to your drawing.

03Specify yoursMade to order

Specify yours.

Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.

AMaterial

  • Optical glass (BK7-class crown, flint)
  • Fused silica / fused quartz
  • Sapphire
  • CaF₂
  • BaF₂
  • MgF₂
  • Silicon (Si)
  • Germanium (Ge)
  • Zinc sulphide (ZnS)
  • Zinc selenide (ZnSe)
  • Nd:YAG crystal
  • Other UV and IR materials

Find a material by wavelength Capabilities

BCoatingIn-house

  • ARAnti-reflection
  • Al · AgMetallic mirror
  • HRDielectric mirror
  • Filter
  • Beam-splitter
  • Polarizing

Coating types

CTolerance grade

Manufacturing tolerances, commercial and precision grade
ParameterCommercialPrecision
Thickness±0.1 mm±0.01 mm
Radius1%0.5%
Refractive index0.0010.0001
Abbe (V-number)1%0.1%
Centration3 arc-min30 arc-sec
Tilt / wedge1 arc-min10 arc-sec
Surface irregularity1 fringeλ/4 (0.25 fringe)
Surface quality (scratch-dig)60-4010-5

DMade to your drawing

Send your drawing.

A drawing or a short spec is enough. We quote to it.

  • Dimensions and tolerances
  • Material and coating
  • Surface quality
  • Quantity
Request a quote
04Request a quoteRoorkee · India

Quote for lenses.

Tell us the part, material, coating and quantity, or send a drawing. We reply with a quote.

Request a quote Call +91 98971 52595
