FIG. 06.01
Optical Filters · Type 02 / 02

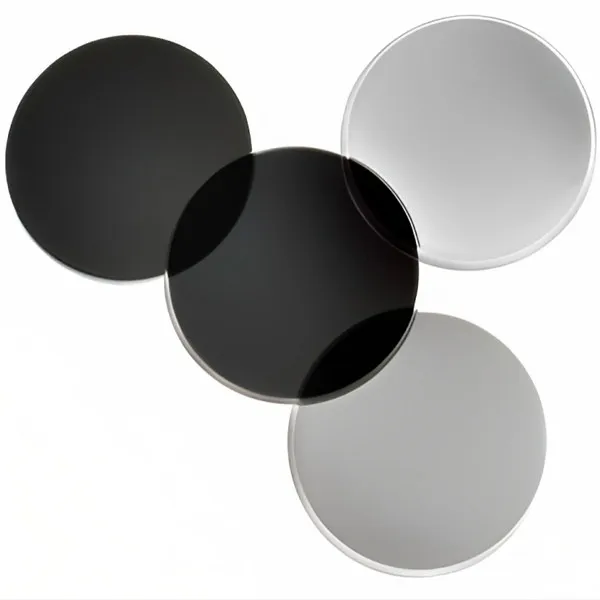

Reflective Neutral Density Filters
A thin metallic coating reflects away a fixed share of the light, evenly across the spectrum.
- Part
- Reflective ND Filter
- Family
- Optical Filters
- Fig.
- 06.02
- Coating
- In-house
- Quality
- ISO 9001
- Made in
- Roorkee
Description
A reflective neutral density filter carries a thin metallic coating that reflects part of the light and transmits the rest, reducing intensity evenly across a broad band without changing colour balance. The rejected light is reflected rather than absorbed, so tilt the filter slightly or block the reflection to keep it out of the system. Uses range from long photographic exposures to laser and laboratory set-ups.
Specify yours.
Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.
AMaterial
- Optical glass (BK7-class crown, flint)
- Fused silica / fused quartz
- Sapphire
- CaF₂
- BaF₂
- MgF₂
- Silicon (Si)
- Germanium (Ge)
- Zinc sulphide (ZnS)
- Zinc selenide (ZnSe)
- Nd:YAG crystal
- Other UV and IR materials
BCoatingIn-house
- ARAnti-reflection
- Al · AgMetallic mirror
- HRDielectric mirror
- Filter
- Beam-splitter
- Polarizing
CTolerance grade
| Parameter | Commercial | Precision |
|---|---|---|
| Thickness | ±0.1 mm | ±0.01 mm |
| Radius | 1% | 0.5% |
| Refractive index | 0.001 | 0.0001 |
| Abbe (V-number) | 1% | 0.1% |
| Centration | 3 arc-min | 30 arc-sec |
| Tilt / wedge | 1 arc-min | 10 arc-sec |
| Surface irregularity | 1 fringe | λ/4 (0.25 fringe) |
| Surface quality (scratch-dig) | 60-40 | 10-5 |
DMade to your drawing
Send your drawing.
A drawing or a short spec is enough. We quote to it.
- Dimensions and tolerances
- Material and coating
- Surface quality
- Quantity
More optical filters.
Quote for reflective neutral density filters.
Tell us the size, material, coating and quantity, or send a drawing. We reply with a quote.
