FIG. 02.01
Prisms · Type 07 / 08

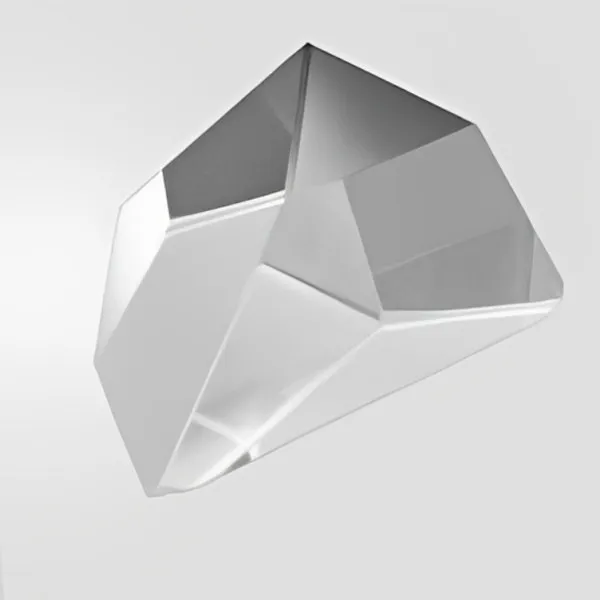

Amici Roof Prisms
A right-angle prism with a roof: turns the beam 90° and corrects the image.
- Part
- Amici Roof Prism
- Family
- Prisms
- Fig.
- 02.07
- Coating
- In-house
- Quality
- ISO 9001
- Made in
- Roorkee
Description
An Amici roof prism is a right-angle prism whose hypotenuse is cut as a 90° roof. It turns the beam through 90° while inverting and reversing the image, which is exactly the correction a telescope objective needs for an upright, correctly oriented view. Compact and light, it is used in spotting scopes, binoculars and other viewing instruments.
Specify yours.
Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.
AMaterial
- Optical glass (BK7-class crown, flint)
- Fused silica / fused quartz
- Sapphire
- CaF₂
- BaF₂
- MgF₂
- Silicon (Si)
- Germanium (Ge)
- Zinc sulphide (ZnS)
- Zinc selenide (ZnSe)
- Nd:YAG crystal
- Other UV and IR materials
BCoatingIn-house
- ARAnti-reflection
- Al · AgMetallic mirror
- HRDielectric mirror
- Filter
- Beam-splitter
- Polarizing
CTolerance grade
| Parameter | Commercial | Precision |
|---|---|---|
| Thickness | ±0.1 mm | ±0.01 mm |
| Radius | 1% | 0.5% |
| Refractive index | 0.001 | 0.0001 |
| Abbe (V-number) | 1% | 0.1% |
| Centration | 3 arc-min | 30 arc-sec |
| Tilt / wedge | 1 arc-min | 10 arc-sec |
| Surface irregularity | 1 fringe | λ/4 (0.25 fringe) |
| Surface quality (scratch-dig) | 60-40 | 10-5 |
DMade to your drawing
Send your drawing.
A drawing or a short spec is enough. We quote to it.
- Dimensions and tolerances
- Material and coating
- Surface quality
- Quantity
More prisms.
FIG. 02.02
Dove Prisms
FIG. 02.03
Penta Prisms
FIG. 02.04
Equilateral Prisms
FIG. 02.05
Wedge Prisms
FIG. 02.06
Rhomboid Prisms
FIG. 02.08
Schmidt Prisms
Quote for amici roof prisms.
Tell us the size, material, coating and quantity, or send a drawing. We reply with a quote.
