FIG. 02.01
Prisms · Type 05 / 08

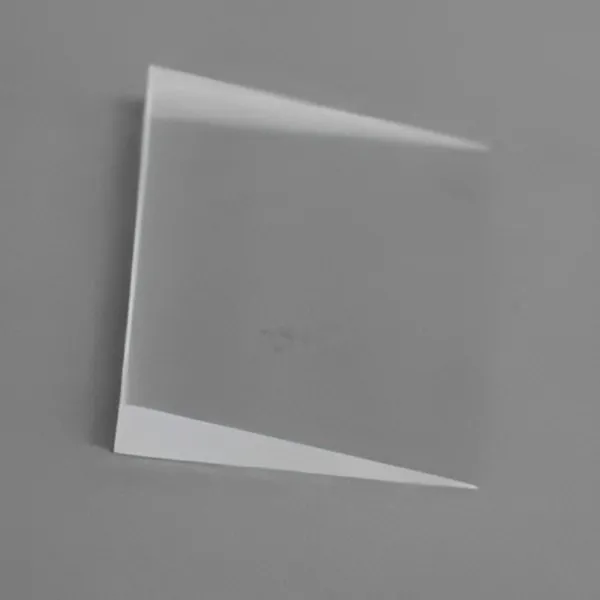

Wedge Prisms
Two flat faces at a shallow angle: deviates a beam by a small, fixed angle.
- Part
- Wedge Prism
- Family
- Prisms
- Fig.
- 02.05
- Coating
- In-house
- Quality
- ISO 9001
- Made in
- Roorkee
Description
A wedge prism has two flat faces set at a shallow angle to each other. It deviates a beam by a fixed angle that depends on the wedge angle and the glass. Two wedges rotated against each other (a Risley pair) can steer a beam anywhere within a cone. Wedges steer and align beams in lasers, spectroscopy and imaging systems.
Specify yours.
Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.
AMaterial
- Optical glass (BK7-class crown, flint)
- Fused silica / fused quartz
- Sapphire
- CaF₂
- BaF₂
- MgF₂
- Silicon (Si)
- Germanium (Ge)
- Zinc sulphide (ZnS)
- Zinc selenide (ZnSe)
- Nd:YAG crystal
- Other UV and IR materials
BCoatingIn-house
- ARAnti-reflection
- Al · AgMetallic mirror
- HRDielectric mirror
- Filter
- Beam-splitter
- Polarizing
CTolerance grade
| Parameter | Commercial | Precision |
|---|---|---|
| Thickness | ±0.1 mm | ±0.01 mm |
| Radius | 1% | 0.5% |
| Refractive index | 0.001 | 0.0001 |
| Abbe (V-number) | 1% | 0.1% |
| Centration | 3 arc-min | 30 arc-sec |
| Tilt / wedge | 1 arc-min | 10 arc-sec |
| Surface irregularity | 1 fringe | λ/4 (0.25 fringe) |
| Surface quality (scratch-dig) | 60-40 | 10-5 |
DMade to your drawing
Send your drawing.
A drawing or a short spec is enough. We quote to it.
- Dimensions and tolerances
- Material and coating
- Surface quality
- Quantity
More prisms.
FIG. 02.02
Dove Prisms
FIG. 02.03
Penta Prisms
FIG. 02.04
Equilateral Prisms
FIG. 02.06
Rhomboid Prisms
FIG. 02.07
Amici Roof Prisms
FIG. 02.08
Schmidt Prisms
Quote for wedge prisms.
Tell us the size, material, coating and quantity, or send a drawing. We reply with a quote.
