FIG. 02.01
Prisms · Type 03 / 08

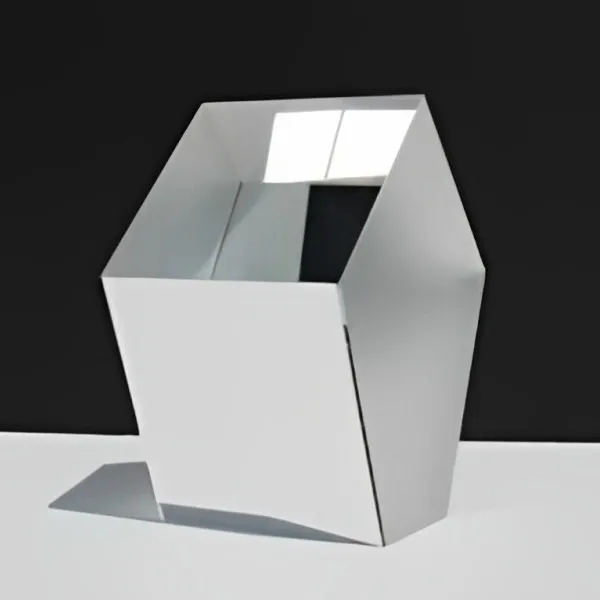

Penta Prisms
Deviates a beam by exactly 90°, even if the prism tilts, without inverting the image.
- Part
- Penta Prism
- Family
- Prisms
- Fig.
- 02.03
- Coating
- In-house
- Quality
- ISO 9001
- Made in
- Roorkee
Description
A penta prism reflects light twice inside its five-sided body, turning the beam through 90°. The deviation depends only on the angle between the two reflecting faces, so the beam still turns by 90° if the prism tilts slightly in that plane. The image is neither inverted nor reversed. Penta prisms are used in cameras, surveying instruments and rangefinders.
Specify yours.
Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.
AMaterial
- Optical glass (BK7-class crown, flint)
- Fused silica / fused quartz
- Sapphire
- CaF₂
- BaF₂
- MgF₂
- Silicon (Si)
- Germanium (Ge)
- Zinc sulphide (ZnS)
- Zinc selenide (ZnSe)
- Nd:YAG crystal
- Other UV and IR materials
BCoatingIn-house
- ARAnti-reflection
- Al · AgMetallic mirror
- HRDielectric mirror
- Filter
- Beam-splitter
- Polarizing
CTolerance grade
| Parameter | Commercial | Precision |
|---|---|---|
| Thickness | ±0.1 mm | ±0.01 mm |
| Radius | 1% | 0.5% |
| Refractive index | 0.001 | 0.0001 |
| Abbe (V-number) | 1% | 0.1% |
| Centration | 3 arc-min | 30 arc-sec |
| Tilt / wedge | 1 arc-min | 10 arc-sec |
| Surface irregularity | 1 fringe | λ/4 (0.25 fringe) |
| Surface quality (scratch-dig) | 60-40 | 10-5 |
DMade to your drawing
Send your drawing.
A drawing or a short spec is enough. We quote to it.
- Dimensions and tolerances
- Material and coating
- Surface quality
- Quantity
More prisms.
FIG. 02.02
Dove Prisms
FIG. 02.04
Equilateral Prisms
FIG. 02.05
Wedge Prisms
FIG. 02.06
Rhomboid Prisms
FIG. 02.07
Amici Roof Prisms
FIG. 02.08
Schmidt Prisms
Quote for penta prisms.
Tell us the size, material, coating and quantity, or send a drawing. We reply with a quote.
