FIG. 02.01
Prisms · Type 02 / 08

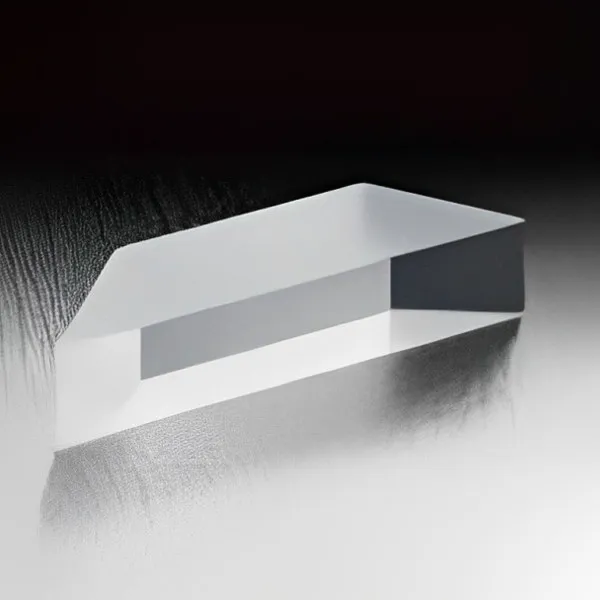

Dove Prisms
Rotates an image: turn the prism by θ and the image turns by 2θ.
- Part
- Dove Prism
- Family
- Prisms
- Fig.
- 02.02
- Coating
- In-house
- Quality
- ISO 9001
- Made in
- Roorkee
Description
A Dove prism is a truncated right-angle prism. Light enters one sloped end face, reflects once off the long base by total internal reflection and leaves through the other end face in its original direction. The image is inverted, and rotating the prism about the beam axis rotates the image at twice that angle. It is used for image rotation, beam steering and alignment.
Specify yours.
Start from a catalogue part or from your own drawing, in the material, coating and tolerance grade you need.
AMaterial
- Optical glass (BK7-class crown, flint)
- Fused silica / fused quartz
- Sapphire
- CaF₂
- BaF₂
- MgF₂
- Silicon (Si)
- Germanium (Ge)
- Zinc sulphide (ZnS)
- Zinc selenide (ZnSe)
- Nd:YAG crystal
- Other UV and IR materials
BCoatingIn-house
- ARAnti-reflection
- Al · AgMetallic mirror
- HRDielectric mirror
- Filter
- Beam-splitter
- Polarizing
CTolerance grade
| Parameter | Commercial | Precision |
|---|---|---|
| Thickness | ±0.1 mm | ±0.01 mm |
| Radius | 1% | 0.5% |
| Refractive index | 0.001 | 0.0001 |
| Abbe (V-number) | 1% | 0.1% |
| Centration | 3 arc-min | 30 arc-sec |
| Tilt / wedge | 1 arc-min | 10 arc-sec |
| Surface irregularity | 1 fringe | λ/4 (0.25 fringe) |
| Surface quality (scratch-dig) | 60-40 | 10-5 |
DMade to your drawing
Send your drawing.
A drawing or a short spec is enough. We quote to it.
- Dimensions and tolerances
- Material and coating
- Surface quality
- Quantity
More prisms.
FIG. 02.03
Penta Prisms
FIG. 02.04
Equilateral Prisms
FIG. 02.05
Wedge Prisms
FIG. 02.06
Rhomboid Prisms
FIG. 02.07
Amici Roof Prisms
FIG. 02.08
Schmidt Prisms
Quote for dove prisms.
Tell us the size, material, coating and quantity, or send a drawing. We reply with a quote.
